E+H静压式液位计 FMX11

产品规格参数

• 测量精度

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• 过程温度

  -10°C...+70°C
  (+14°F...+158°F)

• 压力测量范围

  200 mbar...2 bar
  (3 psi...29 psi)

• 过程压力（绝压）/最大过压限定值

  10 bar (145 psi)

• 主要接液部件

  316L

• 最大测量距离

  200 m H2O
  (656 ft H2O)

• 过程膜片的材质

  Metal

• 传感器

  200 mbar...2 bar
  (3 psi...29 psi)

应用领域

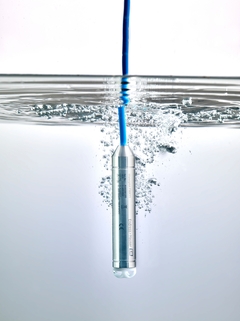

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)

• Cable length: 6 to 30m

• Accuracy: up to ±0.35%

• Drinking water approvals: ACS, KTW, NSF61, DVGW

• Certifications: cULus

优势

• Simple and reliable transmitter for various drinking water applications

• Easy installation, commissioning and operation

• Orderable with flexible measuring ranges and cable lengths tailored to fit your application

• Robust construction for durable long-term services

• Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations

• Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.

• Simple specification and orderin
